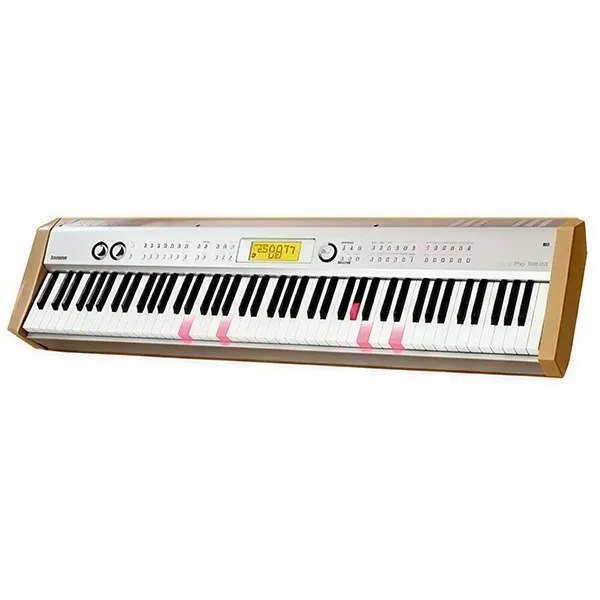

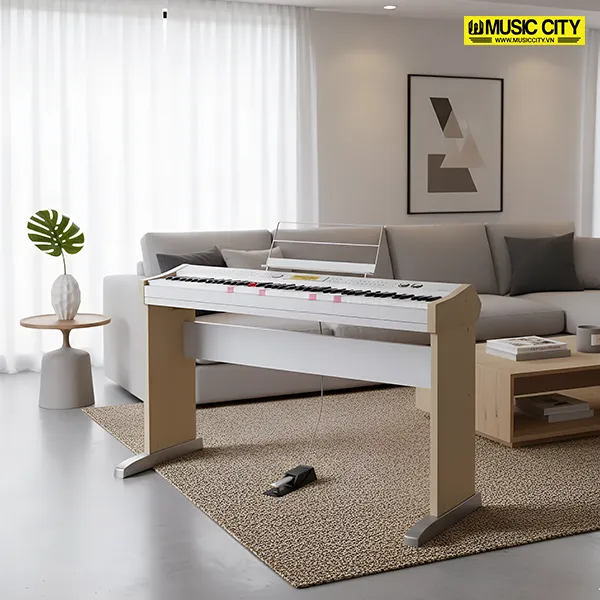

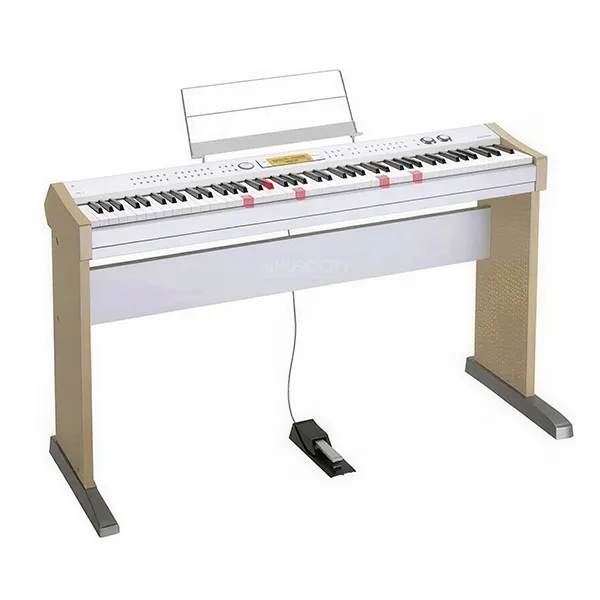

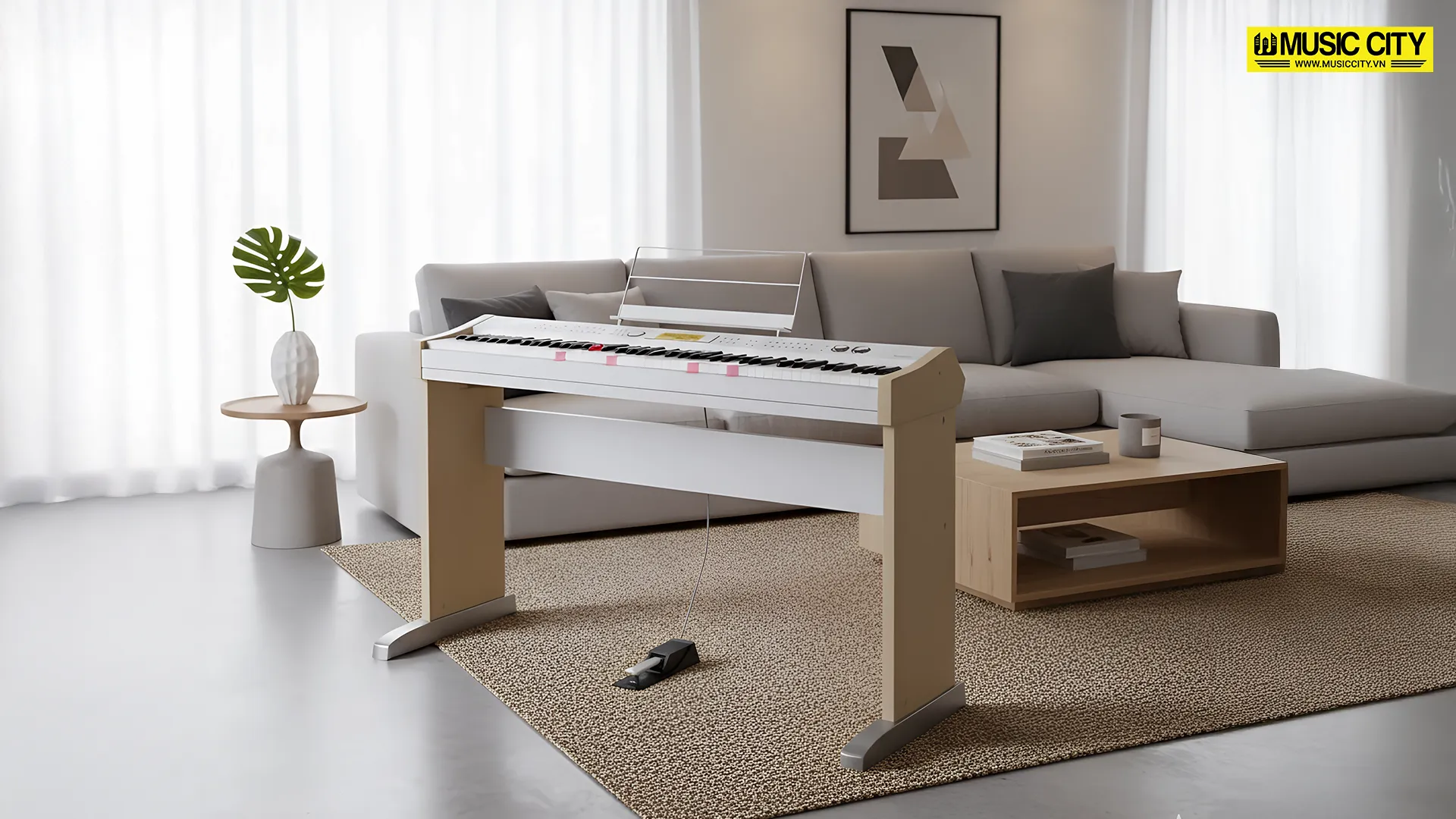

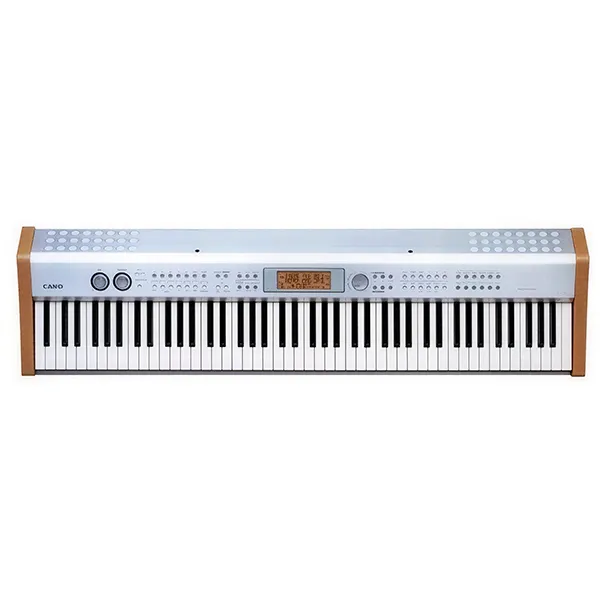

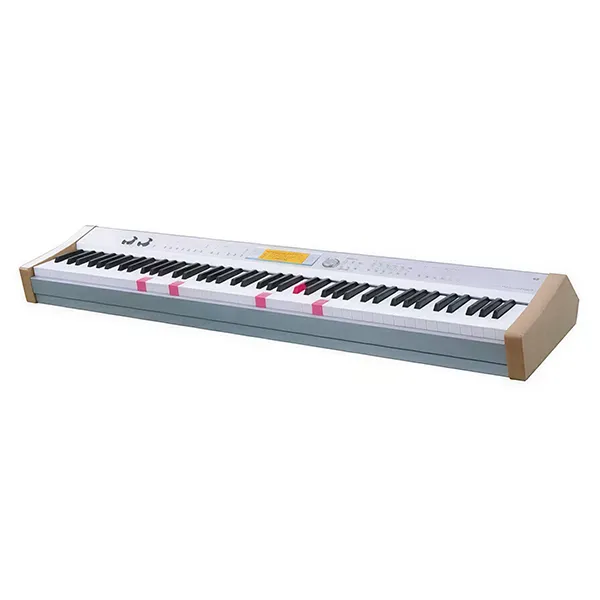

Thông số kĩ thuật Đàn Piano Casio PL40

Keyboard

• Type: Piano
• Number of Keys: 88 (A0 to C8)
• Touch Response: Three sensitivity levels; on/off
• Key Light System: Can be turned on and off
• Key Lighting Polyphony: 10

Tones

• Number of Tones: 271 (63 panel tones + 128 GM tones + 70 variation tones + 10 drum sounds)
• Maximum Polyphony: 64
• Layering: on/off
• Split: on/off (variable split point)

Effects

• Number of Effects: 0
• Type: 3-channel Reverb (8 types) + Chorus (8 types) + DSP (16 types)
• Other: DSP settings (volume, pan, reverb send, chorus send)

Metronome

• Time Signatures: 0, 2/4 to 7/4, 9/4, 12/4, 3/8, 5/8, 6/8, 7/8, 9/8, 12/8
• Tempo Range: 30 to 255
• Metronome Volume: 0 to 127

Auto Accompaniment

• Number of Rhythms: 100
• Number of Rhythm Sound Sources: 65
• Tempo Range: 30 to 255
• Controllers: INTRO, FILL-IN, BREAK, VARIATION 1/2, SYNCHRO START/STOP, ENDING, START/STOP
• Modes: Normal; CASIO CHORD; FINGERED; FULL RANGE CHORD
• Parts: Drum; Percussion; Bass; Chord 1 to Chord 5
• Accompaniment/Song Volume: Adjustable
• Accomp Settings: Chord Hold on/off, Lower Hold on/off, Mixer Hold on/off, On Bass Chord on/off, Tension Chord on/off, 6th Chord on/off

Auto Harmonize : 12 types; adds harmony notes to melody in accordance with auto accompaniment chord fingerings.

One Touch Presets

• Number of Presets: 100 (1 set per rhythm)
• Setting Data: Tone, tempo, other

Mixer

• Number of Channels: 30 (Group A: 14, Group B: 16)
• Parameters: Tone, part on/off, volume, pan, effect send, fine tune, coarse tune

Sequencer

• Number of Songs: 10
• Number of Tracks: System Track + 16 Tracks
• Type: Real-time recording
• Capacity: 15,500 notes
• Editing: Punch-in
• Other Functions: Quantize, delete, time signature, metronome on/off

Music Library

• Number of Tunes: 70 preset
• Arrangement Levels: 3
• Tempo: 30 to 255
• Controller: Stop, Play/Pause, Fast Reverse/Back, Fast Forward/Next, Phrase Repeat
• Repeat Function: Phrase repeat, section repeat
• Demo: 70 preset songs, group repeat playback

Lesson Function

• Step Lesson: 3-Step Lesson
• Lesson Part: Left hand, right hand, both hands
• Voice Fingering Guide: Selectable language (English, Japanese), on/off
• Other: Repeat on/off, pre-count on/off

Other

• Transpose: ±12 semitones, 25 steps
• Master Tuning: A4 = 415.3Hz to 440.0Hz to 466.2Hz (Initial Default: 440.0Hz) Unit: 0.1Hz 510 levels
• Sound: Brilliance, equalizer (for speaker, 3 types)
• Baroque Pitch: on/off
• Stretch Tune: on/off
• Temperament Settings: 7 types (equal temperament, just majorintonation, just minorintonation, Pythagorean system, mean-tone system, Werckmeister, Kirnberger); selectable root
• System: Total (master) volume, total (master) pan

Display

• Backlight: Equipped
• Contrast: Adjustable
• Other: Selectable language (English, Japanese), Hold on/off

MIDI

• System: 16-channel multi-timbre receive; GM Level 1 compliant
• Setting: GM ON command

Rx/Tx channel setting; navigate channel setting

MIDI In-chord Judge on/off

Local on/off, realtime message on/off, device ID

Accomp MIDI out on/off

Pedals  Damper; sostenuto/soft (selectable)

Input/Output:

• Headphones: Stereo mini jacks × 2
• Pedal: Standard jacks × 2
• LINE OUT (R, L/MONO): Standard jacks × 2

Output Impedance; 2.3KΩ

Output Voltage; 1.8V (RMS) MAX

• Power: 15V DC
• MIDI (OUT) (IN)
• USB Port

Speakers: (16cm × 8cm) × 2 (Output: 7.0W + 7.0W)

Power Supply: AC Adaptor: AD-15ML

Power Consumption: 15V 39W

Dimensions: 129.8 × 34.2 × 13.9cm

Weight: Approximately 22.0kg
